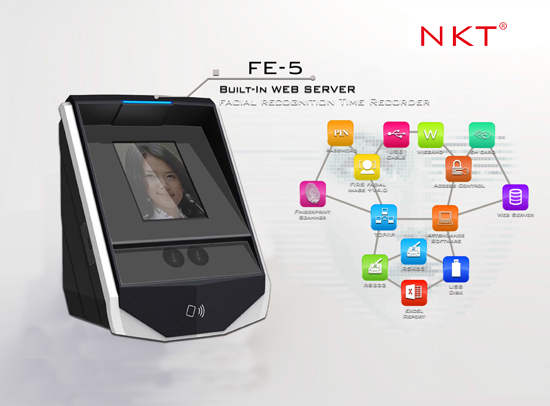

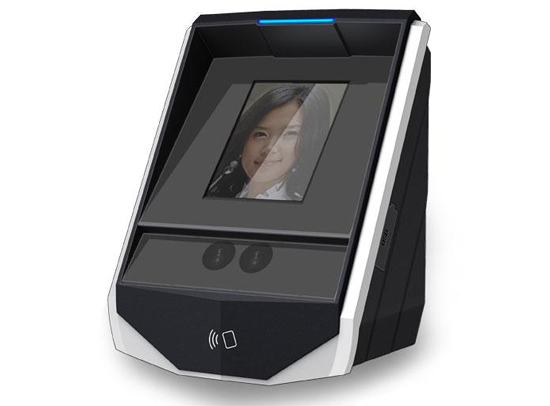

Product Name: FACE Recognition Access Control Terminal

Model No.: NKT FG-5 Feature:







Technical Specifications

Functions Description
Model E5 E10
Camera Special Dual-camera
Authentication Method Face Only Staff ID + face EM/Mifare Card + face (card reader optional) EM/Mifare Card Only
Maximum User(1:N) E5: 500 users E10:1000 users
Anger Range Level: ±20°, Vertical: ±20°
Working Distance/ Fitting height 30-80CM /145-195CM
Built-in Card Reader ( EM/Mifare ) optional
Snapshot Save user pictures in spite of recognition result
I/O(2 Inputs and 2 Outputs Switch Signal Only
License Control Supported (Built-in security chip)
Function Key Up to 10 function keys are supported
Indicated Light Red (Alarm/Failed), Green (Running)
Language English, Chinese (Simplified), Chinese(Traditional)
Working Environment Illumination :
0-20000LUX Water Proof Class 3 Dust Proof Class 6
Working Humidity 20%~80%
Working Temperature -20~55℃
Dimension 180×138×92 mm
Installation Wall Mounting

Features
1. Our face recognition time attendance terminal supports multiple identification methods.
2. The adoption of the powerful SDK allows two-way data interaction and auto uploading function.
3. Supporting the GPRS data transmission, this product has optional TCP/IP, USB communication interfaces for multi applications.
4. Its embedded face monitor software allows for on-site and remote (optional) video monitoring.
5. This product is fitted with a buzzer, body sensor and anti-disassembly security alarm.
6. The user data and RTC synchronization can be simultaneously displayed.
7. The access control ability of this face recognition time attendance terminal is maximum users for E5 1: N (500 users) and for E10 1: N (1000 users).
8. There are an embedded web server and standard attendance management software manufactured by our own company.
9. The exclusive facial image +V4.0 recognition algorithm is used to ensure operation speed and user's safety.
10. This product boasts high recognition accuracy and fast speed with the recognition rate over 99.9%, false acceptance rate (FAR) less than 0.01% and recognition speed lower than1s. Furthermore, the LFM function makes recognition speed faster and accuracy higher.
11. Our product adopts the 3.5 inch TFT Touch color screen with 320×240 resolution and FIRS patent non-visible auxiliary light to protect users from danger. The voice prompt is used to remind users of each operation step.
12. When data storage exceeds 85%, then the alarm light will be triggered and the alarm message is shown in LCD.
13. Owing to the excellent light adaptability, our face recognition time attendance terminal can intelligently grasp the desirable information, not being disturbed by factors, like glasses, hair style, age, or other small changes of face.
14. With the features of easy operation and humanized interface, our product can work for 24 hours a day.



For more details, please refer to our catalogue.
