指紋/拍咭考勤門禁系統 > NKT NU-3200 指紋/拍咭門禁考勤機

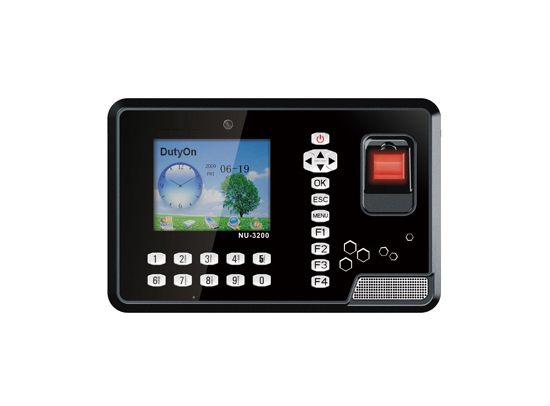

Product Name: Fingerprint Access Control Terminal with Camera

Model No.: NKT NU-3200 Feature:







Feature:
FP + PIN + EM/Mifare card
Large Vivid Color Display
Web Based
SD card slot
2 USB ports
TCP/IP
Built-in High Resolution Camera
Large Attendance Record Capacity
Large FP Template Record Capacity
Specification:
Access Control Interface : Relay Output, 2 x WG26 In/Out, 1 x WG34 In/Out
Alarm, Door Open;
Alarm, Duress;
Alarm, Tamper;
Alarm, Time via Internal or External Speakers;
Authentication Method : Fingerprint, PIN, EM/Mifare Card (optional)
Authentication Text Message;
Authentication Voice Message : customize via USB Drive
Daylight Saving Time;
Timezone Management : 50 Groups
User Group Management : 5 Groups
Backup Battery : Optional
Display Screen : 3.5" 320 x 240 Color LCD
Firmware Upgradeable
Graphic / Image Display Interface;
Keypad : 22-Key
Language, Audio : Standard: English Optional: Any Other
Language, Display : Standard: English Optional: Any Other
Multi-Device Ready : Max. 255 units
On Screen Memory Capacity Check;
Operation Mode : Online
Power Off, Auto
Screen Saver
Self Testing
Sleep Mode
Photo Taking : with Built-in Camera / External Camera via USB
Voice Recording by User : via SD Card
Fingerprint Sensor Resolution : 256x256 or about 500dpi
Fingerprint Algorithm Engine : SmackFinger3.0
FAR : < 0.0001%
FRR : < 0.01%
Fingerprint Detection Area : 16mm x 14 mm
Fingerprint Placement Angle : 360°
Fingerprint Template Update : Auto
Fingerprint Verification : 1:1, 1:N
Max. Capacity, Attendance Record : 200,000
Max. Capacity, Identification : 5,000 (expandable to 80,000)
Max. Capacity, Management Record : 1,000
Recognition Speed, Average : 1.2 second
1 x RS232 Port
1 x RS485 Port
1 x SD Card Slot
1 x TCP/IP Port
2 USB Ports (Host / Client)
Anti-Static Strength : <15KV
Dimensions (W x H x D) : 215 (W) x 141 (H) x 52 (D) mm
Relative Humidity, Operation : 20% to 60%
Relative Humidity, Storage : 20% to 80%
Software : Free “UnionAttend”
Temperature, Operation : 0 to 45 Degree Celsius
Temperature, Storage : -10 to 65 Degree Celsius
Voltage, Input : DC12V
Carton Box Dimensions (W x H x D) : 625mm x 390mm x 285mm
Unit / Carton Box : 10
Weight, Gross : 1082g
Weight, Net : 540g





For more details, please refer to our catalogue.

Description Language :English

Download Catalogue (Ver. 1.0)
